The practical sound moderator for full-bore rifles...

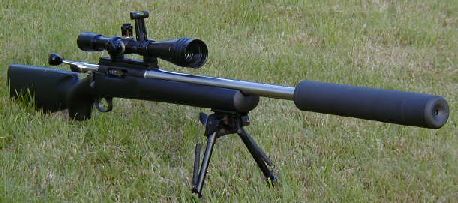

RPA/Border 6mm BR rifle with T8 Scout Reflex Suppressor

To be effective, full-bore rifle suppressors have to be rather bulky. Adding a suppressor to a full-bore rifle normally increases the overall length by about twelve inches, making the weapon awkward and muzzle-heavy. The suppressed weapon doesn't fit in a standard rifle case, so the sound moderator must be removed for storage and transport. Shortening the barrel by a few inches helps a bit, but if the barrel is shortened too much, the bullet muzzle velocity and trajectory are adversely affected. To overcome these and other problems, Finnish designer Juha Hartikka invented the Reflex Suppressor...

What is a Reflex Suppressor?

Cut-away picture of T4 Reflex SuppressorThe patented Reflex design of suppressor (or sound moderator) has the expansion chamber sleeved back over the front four to eight inches of the barrel. This reduces the overall length of the suppressed weapon, and improves its balance and handling qualities.

Why use a full-bore rifle suppressor?

To save your hearing and, if you use a rifle for work, to comply with the UK Health and Safety legislation. Independent tests with a 308 Winchester hunting rifle confirm that Reflex Suppressors do reduce the sound pressure at the shooter's ear to well below the British Health and Safety Executive's "peak action level" of 140 dB. Above this level, HSE regulations require employers to reduce workers' exposure as far as reasonably practicable by means other than ear protectors. This legal requirement also extends to self-employed persons.

In practice, depending on the amount of bullet flight noise reflected back to the shooter by trees or fences etc., a full-bore hunting rifle with a good suppressor sounds about the same as a high velocity 22 LR rim-fire rifle.

Is a suppressed full-bore rifle "reasonably practicable"?

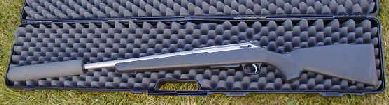

Individual hunting and target-shooting circumstances vary, but the Reflex Suppressor concept solves most of the practical problems associated with suppressed full-bore rifles. For instance. this Tikka M695 270 Win hunting rifle with full-length barrel and Reflex Suppressor still fits neatly into a standard rifle case:

Tikka M595 .270 hunting rifle in case with Reflex Suppressor

For muzzle-mounted suppressors, the usual single-point mounting system  is relatively crude and weak - just a short 1/2" UNF thread and a small shoulder to align the sound moderator with the rifle bore.

By contrast, the two-point Reflex mounting system with a thread at the muzzle and a close fitting bush at the rear of the suppressor is very strong and resistant to harsh field use. The suppressor stays in alignment with the bore even if it is accidentally unscrewed a couple of turns.

Accuracy and trajectory are not impaired!

0.13"  100-yard  group fired with T8 Reflex SuppressorWe usually find that the accuracy of hunting and target rifles is, if anything, slightly improved by the addition of a Reflex Suppressor.

This 1/8 MOA group was fired during load testing with a specialized long range target/varmint rifle fitted with a T8 Scout Reflex Suppressor (see photo below).

Shooting without ear defenders, we can listen as well as look and feel for wind changes. The suppressor also cuts recoil by about one third, which makes group-shooting a real pleasure.

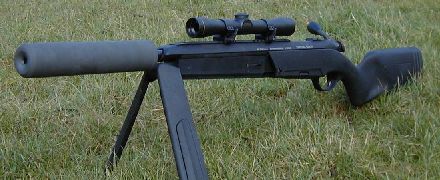

The 308 Steyr Tactical Scout rifle is only 3' 6" (107 cm) long and weighs
just 8.5 lb (3.8 kg) with full-length barrel, Reflex Suppressor and scope


On this website we provide technical product information, suggested retail prices, hints and tips, guidance on legal and regulatory matters, and links to the Finnish manufacturer's website which includes independent test data and reports.

If you have a question which is not answered here, please don't hesitate to phone or fax us. All United Kingdom and overseas trade, retail and government enquiries are welcome.
